Unity Scriptable Rendering Pipeline


Example of Sponza scene rendered by SRP

Introduction

A custom Scriptable Render Pipeline implemented in Unity using C# and HLSL.

The pipeline covers the full rendering workflow, including culling, lighting, shadow mapping, and post-processing, with a modular architecture designed for flexibility and extensibility.

Focused on understanding modern rendering pipelines and building production-style rendering systems.

Overview:

This project implements a full custom rendering pipeline using Unity’s Scriptable Render Pipeline (SRP).

It includes core rendering stages such as camera rendering, culling, command buffer execution, lighting, shadow mapping, and post-processing.

The system is designed to provide explicit control over rendering order, data flow, and GPU interaction.

Technical Breakdown

Rendering Pipeline

Implemented the full SRP rendering flow, controlling each stage of rendering explicitly.

The pipeline handles opaque and transparent objects separately to ensure correct rendering order and visual results.

Command buffers are used to manage rendering execution and GPU submission.

Screenshot 2026-04-27 231845.png

Rendering Flow showing in Frame Debugger


Customize rendering order

Lighting System

Implemented a lighting system supporting multiple light types (Directional, Point, Spot).
Light data is extracted from culling results and uploaded to the GPU via command buffers.
Lighting calculations are performed in shaders using a BRDF-based model.


Light Data Setup

Lighting Shader


Light Settings Pannel

BRDF & Global Illumination

Built a physically-based shading model using a microfacet BRDF.

Supports baked global illumination by integrating lightmaps and environment lighting with real-time shading.


BRDF (microfacet model)


Baked Global Illumination


Lighting computation combining material and light data

Shadow Mapping

Implemented shadow mapping for multiple light types.
Supports configurable shadow parameters such as resolution, cascades, and filtering.
Shadow maps are generated per light and integrated into the lighting pipeline.


Shadow rendering

Configurable shadow settings


Visualized generated shadow maps

Shader Library

Developed a modular shader library for reusability and maintainability.
Includes shared material inputs, math utilities, coordinate transformations, and BRDF functions.
Supports both Lit and Unlit shaders.


Lit & Unlit Shader


Shader function library

Material System

Built a parameter-driven material system based on the shader library.
Material properties are bound to shaders and reused across rendering passes.
Supports reusable presets for different rendering scenarios.

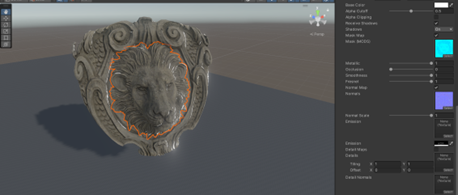

Normal Map On/Off


Shadow On/Off

Post Processing

Implemented post-processing effects including color grading and exposure control.
The pipeline generates intermediate textures (color and depth) as inputs for post-processing.
Post-processing is integrated into the rendering pipeline with explicit execution order.

Screenshot 2026-04-27 233732.png

Post Processing Setting


Color Texture On/Off

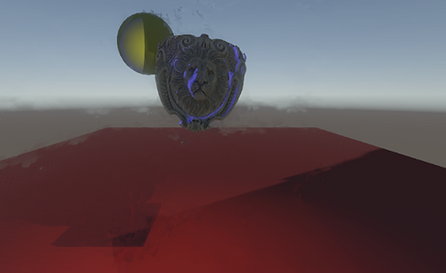

Example of color grading (Highlight: Red, Shadow: Yellow)

Optimization

GPU Instancing:

Implemented GPU instancing and dynamic batching to improve rendering performance.
Supports rendering 500+ instances of the same mesh in a single draw call.
Frame Debugger confirms reduced draw calls and efficient batching behavior.

  • Reduced draw calls significantly

  • Improved rendering performance

  • Supports per-instance material variation


Example of rendering 500+ instancing using GPU Instancing


GPU Instancing and Batching settings
